Why Study Stellar Chemical Compositions?
The elements of the
periodic table do not just magically exist! They have been
created, mostly in nuclear fusion reactions that occur in the extremely
hot and dense interiors of stars. Each star generates heavy elements
and returns them to the interstellar medium as it dies. Thus the overall
metal content of our Galaxy has grown with time. But our knowledge of
elemental nucleosynthesis is far from complete, so much so that a panel
of the National Research Council's board on physics and astronomy named
"How were the heavy elements from iron to uranium made?" as number three
in their list of
The 11 Greatest Unanswered Questions of Physics.

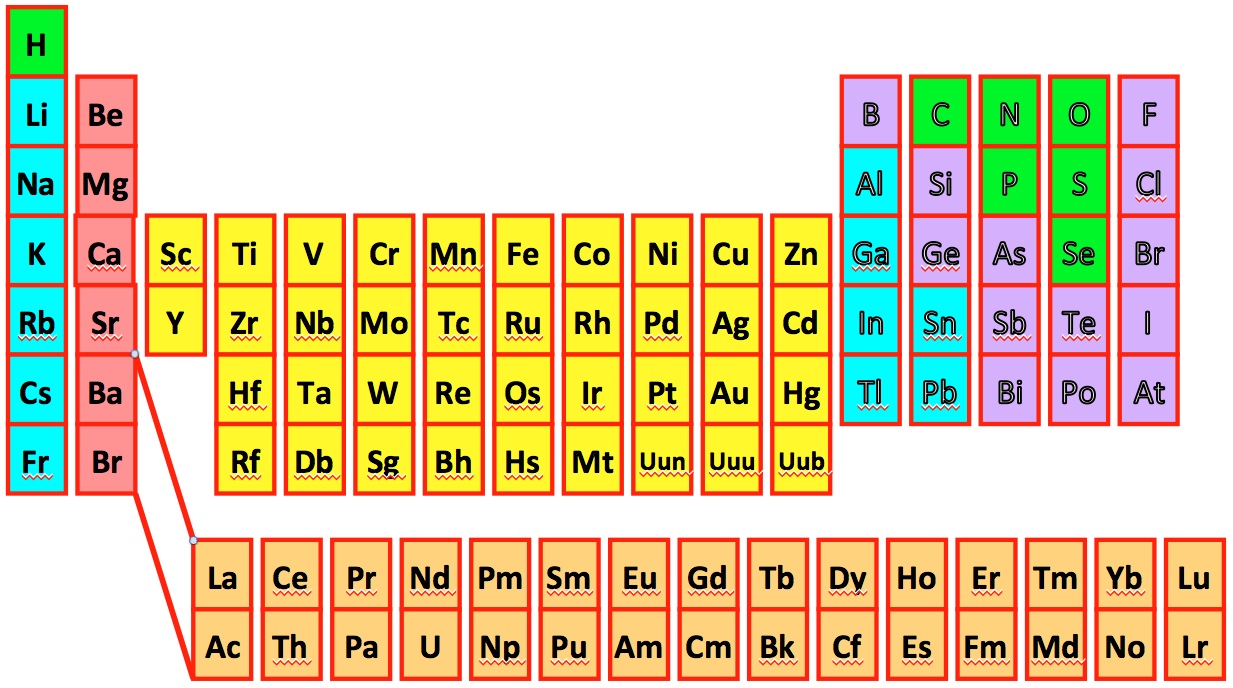

- A general overview of stellar chemical compositions
and nucleosynthesis of the elements:
Here is the cover page from the November/December 2005
issue of McDonald Observatory's
StarDate magazine. StarDate writer Rebecca
Johnson wrote this copyrighted article, which you are
welcome to read on-line by clicking on its title:
Chemical Universe.
|
|
|
The record of our Milky Way Galaxy's initial burst of element generation
is contained in the chemical compositions of metal-poor stars of
the Galactic halo. I am involved in several related efforts to apply
high resolution, high S/N spectroscopy to the determination of
abundances in stars with metallicities ranging over three orders of
magnitude. Here I briefly discuss a few aspects of these projects,
These results are products of the collective efforts of my friends
who are co-authors on the various papers.
Neutron-Capture Elements: the r-Process
Neutron-capture elements are those whose major isotopes are created in
nuclear fusion regions via the ingestion of free neutrons by lighter
seed nuclei (such as Fe, for example). The neutron-capture elements
defined in this way comprise essentially all elements of the periodic
table with atomic numbers greater than 30, thus comprising nearly
two-thirds of the stable elements in the periodic table.
Neutron-capture and beta-decay rates compete with each other in building
the neutron-capture elements. Low neutron fluxes (the so-called
s-process) create unstable nuclei that undergo beta-decays between
successive neutron captures, and element synthesis proceeds along the
valley of beta-stability. High neutron fluxes (the r-process)
create extremely heavy isotopes of nuclei (up to the neutron-drip line)
that then rapidly decay back toward the valley of β-stability after
the cessation of the neutron flux. The s-process occurs
during quiet stellar evolution (such as during helium burning), while
the very violent r-process is associated in some way with the
explosive deaths of high-mass stars in Type II supernovae.
The most metal-poor of our Galaxy's stars exhibit enormous variations
in their bulk contents of neutron-capture elements, as a glance at these
spectra show.
|

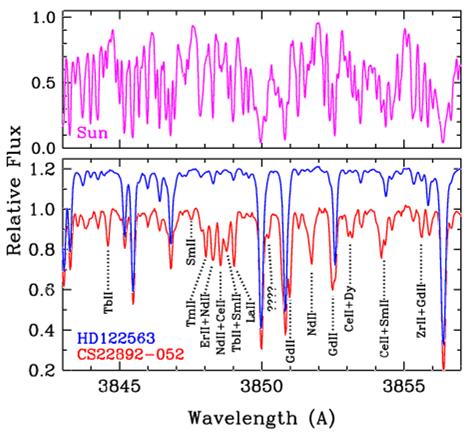

- A small portion of the near-UV spectrum in the Sun
and two very metal-poor stars:
The top panel contains the solar spectrum (Delbouille
et al. 1973). The bottom panel shows spectra of two very
metal-poor giant stars: HD 122563, deficient in neutron-capture
elements; and CS 22892-052, strongly enhanced in such
elements.
Click on picture to see larger image
|
Studies by our group and others have shown that the dominant mode of
neutron-capture element production in extreme cases such as CS 22892-052
(e.g
Sneden et al. 2003) and CS 31082-001
(e.g
Siqueira Mello et al. 2013)
and many other halo stars has been the r-process.
This is illustrated in the elemental abundance plot for HD 108317 shown here.
There is a very nice match to the expected abundance
distribution from the r-process, but no match at all to an
s-process pattern. This indicates the dominance of explosive
synthesis of the neutron-capture elements in the early Galactic history.
The availability of HST/STIS high-resolution spectra for a few r-process-rich
stars has been crucial in filling in the abundance curves with detections
of elements such as Ge, Cd, Te, Lu, Os, Pt, and Au.

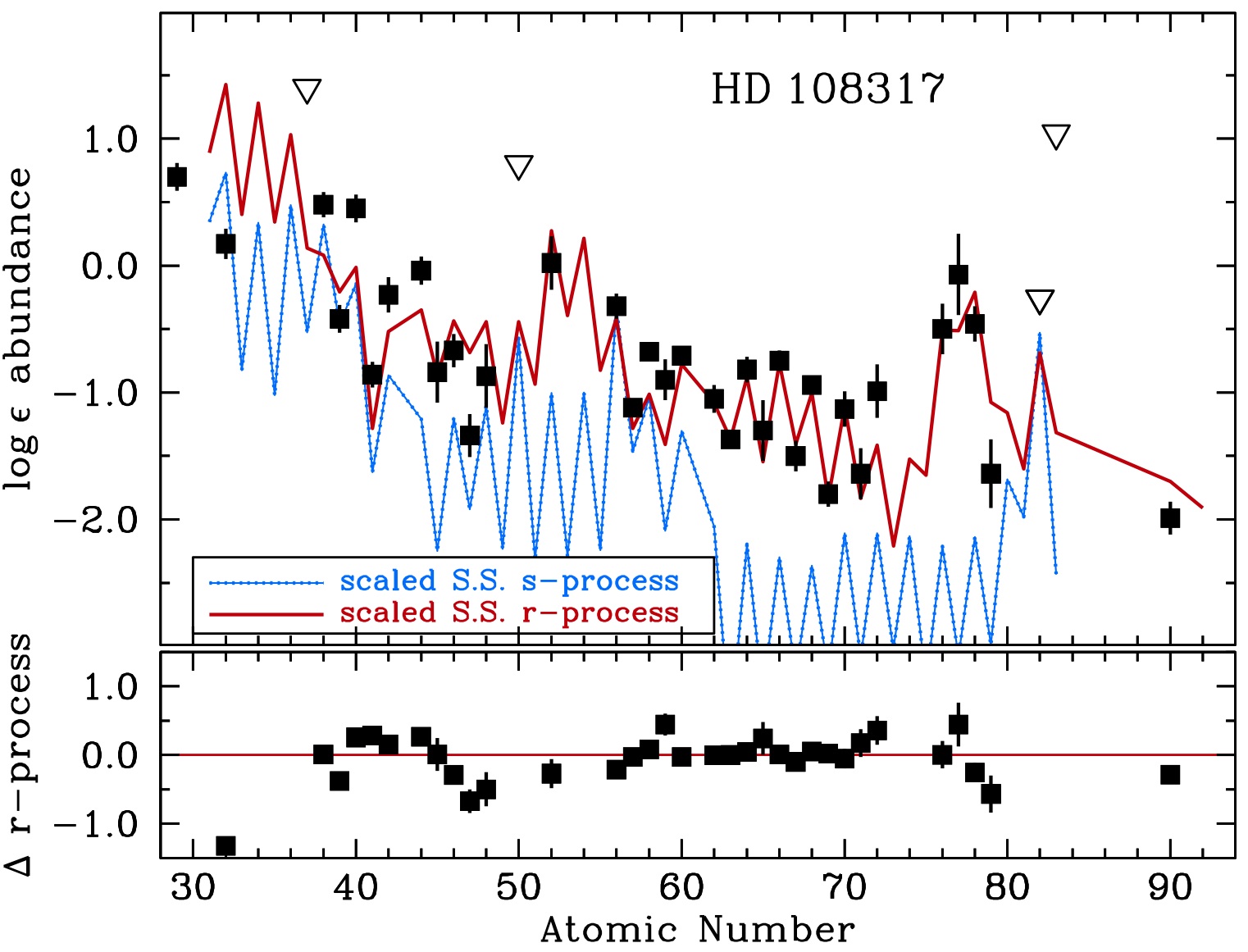

- Observed and predicted abundances for neutron-capture
elements in HD 108317:
This plot is taken from
Roederer et al. 2012).
The black symbols are the observed abundances, the open
triangles are upper limits, the
blue curve is the solar-system (meteoritic) s-process
abundance distribution normalized to the observed Ba abundance,
and the red curve is the solar-system r-process
distribution normalized to the observed Eu abundance.
The abundance units are logarithmic number
densities on a standard scale in which
log ε(H) = 12.
The lower panel shows the differences between the observed
abundances and the scaled solar-system curve.
Click on picture to see larger image
|
|
The very heavy neutron-capture element thorium (Th) is created only via
the r-process, but it is radioactively unstable, decaying with a half-life
of 14 billion years. This element has been detected in a lot of very
metal-poor, r-process-rich stars. In the above figure, the relative
abundance of thorium to the other neutron-capture elements less than
predicted, because as time has gone on thorium has decayed away.
This yields an "age" for Th and other neutron-capture elements of about
15 billion years, possibly providing an independent age estimate for the
halo of our Galaxy.
For a general discussion of this work, please see my
interview by StarDate writer Rebecca Johnson in 2002 (copyright
University of Texas at Austin).
For a technical summary of our r-process abundance studies in halo
metal-poor stars, please see Cowan & Sneden (2003, Nature,
440, 1151).
A selected list of other papers emphasizing the nucleosynthetic
interpretation of these abundance results may be found
John Cowan's website.
Neutron-Capture Elements: the s-Process
In the Galactic halo live many "blue metal-poor" (BMP) stars. These are
stars that are on the main sequence but are bluer and more luminous than
the normal stars of the main-sequence turnoff. If they are as old as the
rest of the Galactic halo, BMP stars should have long-since evolved away
from the main sequence. George Preston discovered (2000, AJ,
120, 1014) that about 2/3 of BMP stars are spectroscopic binaries,
ones with long orbital periods but very low eccentricities (that is, nearly
circular orbits). The simplest conclusion is that BMP stars that we see
today are past victims of substantial mass transfer from companions that
now are compact objects.
The mass transfer happened during the expansion of the companion envelopes
during their red-giant branch (RGB) or asymptotic giant branch (AGB) phases.
Further proof of this scenario has come from chemical composition studies
of BMP stars. We discovered (Sneden, Preston, & Cowan 2003, ApJ,
592, 504) that several of the most metal-poor BMP binaries have greatly
enhanced neutron-capture abundances with a distinct s-process
distribution. The heaviest elements in the s-process chain, lead
(PB) and bismuth (Bi) were discovered in one BMP star, as the following
illustration shows.
|

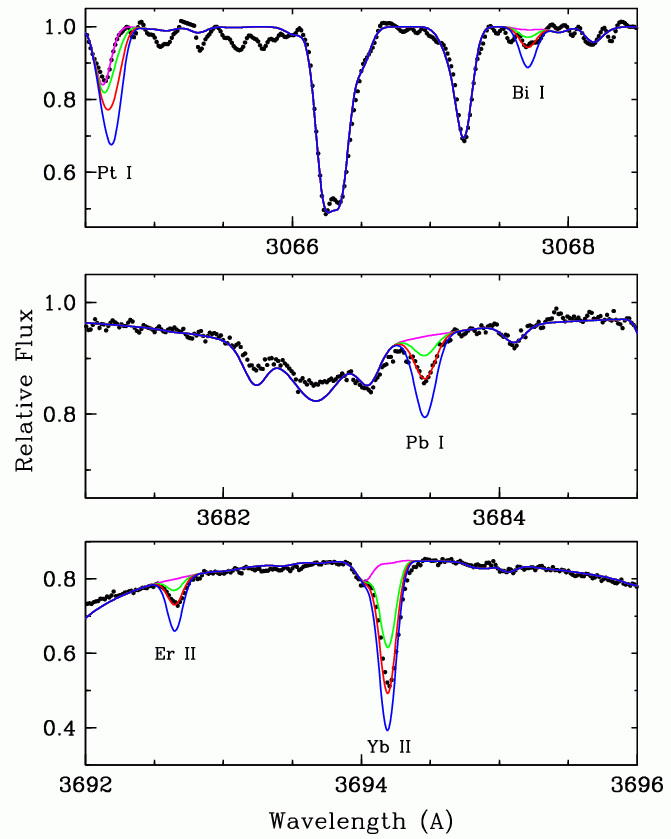

- Selected spectra of neutron-capture elements in the
BMP star CS 29497-030:
These plots, taken from
Ivans et al. 2005), illustrate observed and
synthetic spectra
of several strong transitions. Without very large
overabundances of neutron-capture elements, these spectral
lines would be undetectably weak.
The detection of bismuth (top panel) is the first detection
of this element in metal-poor stars.
Click on picture to see larger image
|
Detailed comparisions with predicted s-process abundance distributions
confirm its dominance in BMP binaries, as illustrated in the nex figure.
-

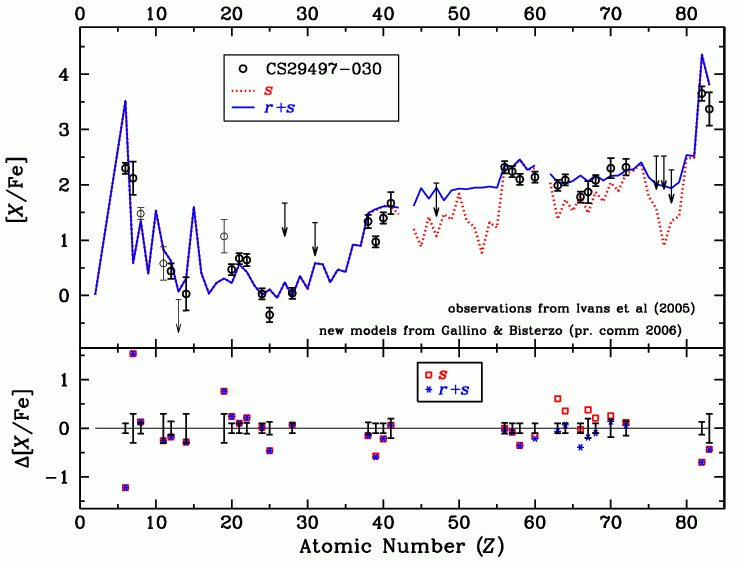

Comparison of observed and predicted neutron-capture
abundances in CS 29497-030:
This plot is taken from
Ivans et al. 2006).
In the top panel the
observed abundances are open circles (upper limits are
depicted with arrows), a predicted pure s-process
abundance set is the red dotted line, and an s-process
distribution with the addition of a prior enrichment
by the r-process is the blue solid line.
In the bottom panel, the red and blue symbols are the
values of the observed abundances minus the pure
s-process and the r+s-process predictions,
respectively. The black bars represent the observational
uncertainties.
The abundances are in the standard bracket notation, defined
as the logarithmic abundance ratios by number X/Fe
minus the same ratios in the Sun.
Click on picture to see larger image
|
|
Globular Cluster Abundances
|
- Images of two bright globular clusters:
On the left is a ground-based picture of
M13
On the right is a color picture of
M15 from the Hubble Heritage program.
Click on pictures to see larger images
|
|
The elemental abundance patterns of globular cluster stars exhibit
a rich (and often bewildering) variety. Very large star-to-star and
cluster-to-cluster abundance differences are the rule, not the exception.
The light elements of the periodic table (those elements with atomic
numbers 13 or less) have the most obvious variations. The abundances of
elements C, N, O, Na, Mg, and Al can be different in otherwise very
similar giant stars of a single globular cluster.
Fortunately, these abundances do not vary at random, but instead
are interlinked in various correlations and anticorrelations.
But some stars will have relatively large abundances of O and Mg and
small abundances of Na and Al, while other stars will show the opposite
abundance pattern.
Good examples are the plots shown in the diagrams below.
|

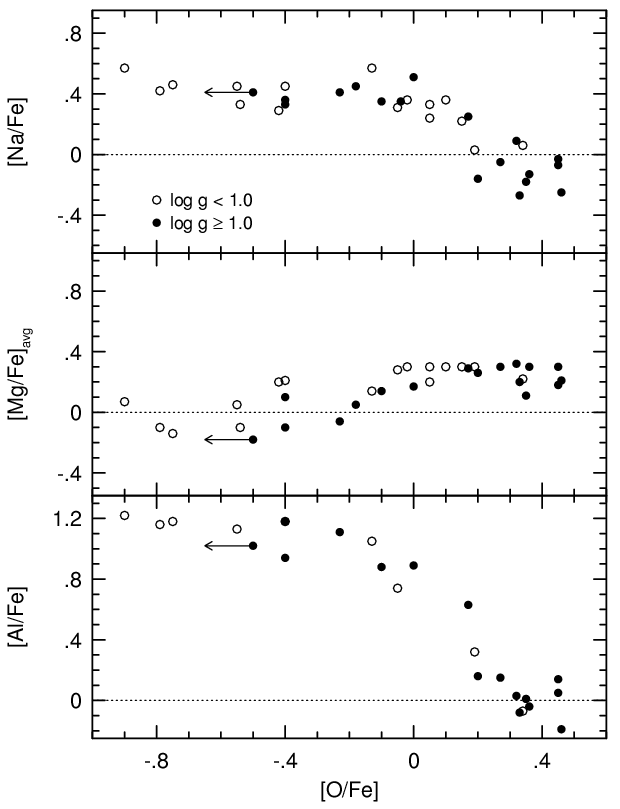

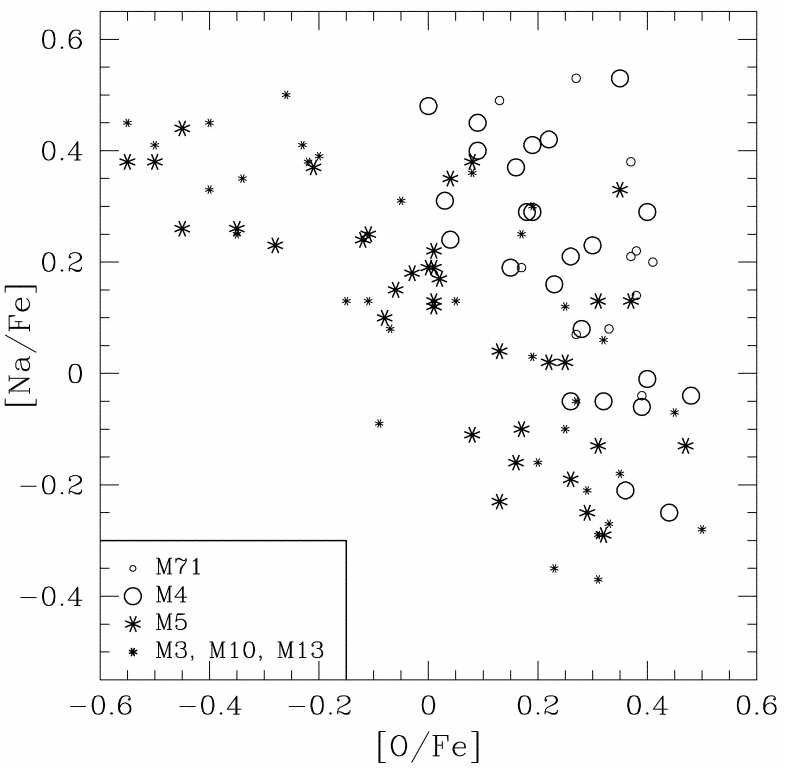

- Light element abundance correlations in M13 (left)
and in several clusters (right):
Please see the papers for detailed explanation:
Kraft et al. 1997) and
Carretta et al. 2009) and.
Click on pictures to see original images
|
A simple nucleosynthetic scenario covers many of the observed light element
variations: very high temperature (up to 80 million degrees Kelvin)
hydrogen fusion cycles. At the same high interior temperatures
in which O can be converted to N in the ON-cycle hydrogen burning,
spectroscopically undetectable) Ne can and will be turned into Na
The anticorrelation between O and Na therefore occurs quite naturally,
and the difference between high O, low Na stars and low O, high Na
stars is that the latter stars have had a combination of higher interior
temperatures and better convective envelope mixing than have the former
stars. But the high central temperatures needed to make this idea work
are daunting. Recent studies focus instead on the idea that earlier
generations of cluster stars (now dead) seeded the intra-cluster medium
with their elemental output, and the presently observed stars gathered in
this material at birth.
Please see, for example,
Carretta et al. (2009) and the review by
Carretta et al. (2009)
for an extended discussion of these issues.
Support for the multiple-population idea has come from the identification
in recent years of several globular clusters with multiple color-magnitude
diagram sequences.
These clearly indicate age/metallicity/abundance spreads in at least these
clusters.
Particularly intriguing is the case of M22.

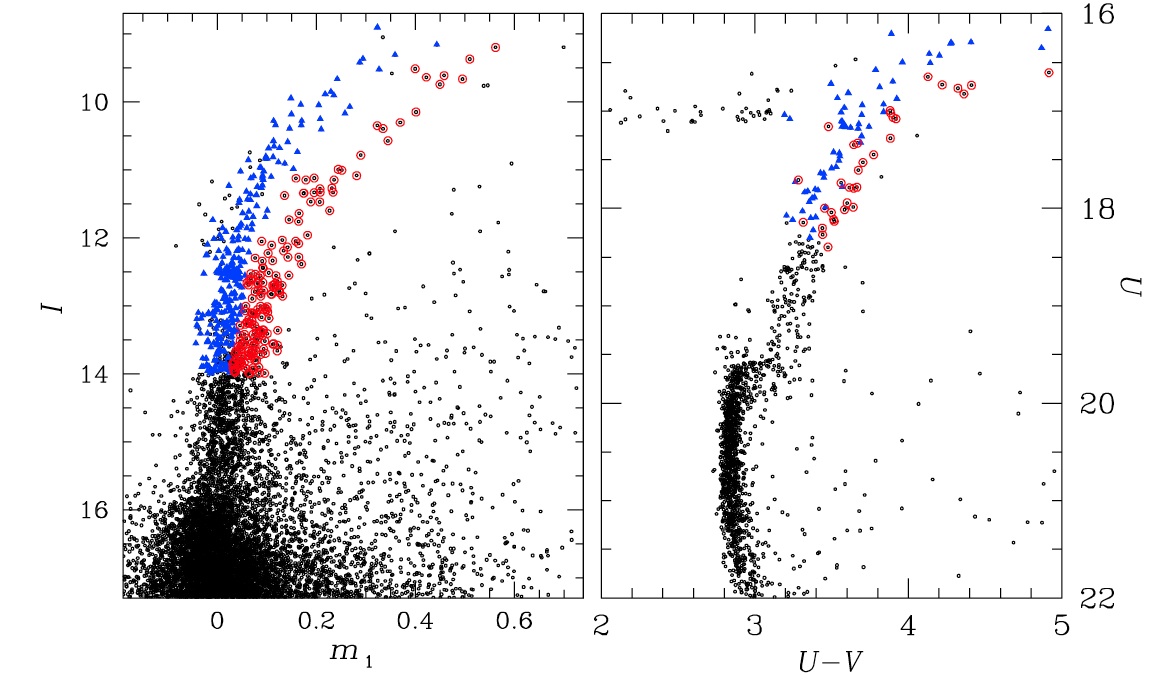

Not only is a split red giant branch (RGB) obvious in the figure below, but
the discriminants in the color-magnitude diagram appear to be related to
two chemically-distinct populations: a relatively metal-poor group
(mean [Fe/H]=-1.82) that
has neutron-capture element abundances characteristic of r-process dominance,
and a less metal-poor group (mean [Fe/H]=-1.67) that exhibits of significant
enhancements of carbon and s-process abundances.
These results are described in detail by
Marino et al. (2012) and references therein.
|
- Red giant branch (RGB) sequences in M22
Left panel: I versus the Str¨omgren index m1.
Stars belonging to the two RGBs have been represented in
red and blue colours. Right panel: Stars selected in the
double RGB of the I-m1 diagram, have been represented in
the U-(U-B) CMD. (from
Marino et al. 2012).
Click on picture to see larger image
|
Acknowledgments
All of the research described here has resulted from the collective efforts
of large numbers of people, including my current and former students, and
investigators at many astronomical institutions around the world.
Their contributions are gratefully acknowledged.
For many years I have benefited from grants by the U.S. National Science
Foundation and the National Aeronautics and Space Administration.
Their support has been crucial to my research.
HOME |
TEACHING |
HALOSTARS |
DISKSTARS |
LABDATA |
MOOG |
SPECTRE |
MISC
