LRS2 066LL Wavelength Calibration
Updated: Oct14,2020

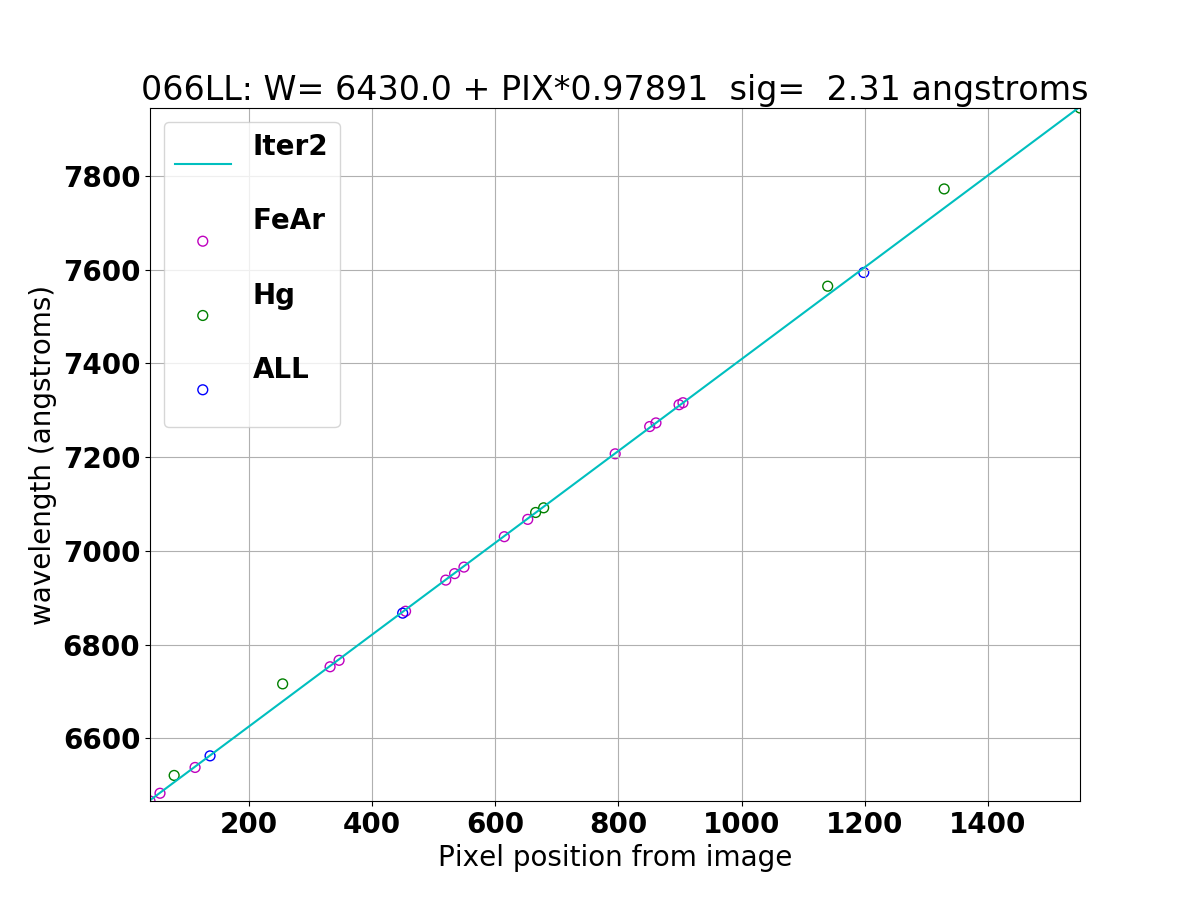

The linear wavelength fit for 066LL.



wavelength = ZP + slope * X_pixels

# waversols_postprocess dolution for: 066LL
     0.9789055     0.0030749      (slope, m.e.)
  6429.9863281     1.8469449      (Y-intercept, m.e.)
     2.3146088                    (Y-sigma)
   22                             (number of fitted points)

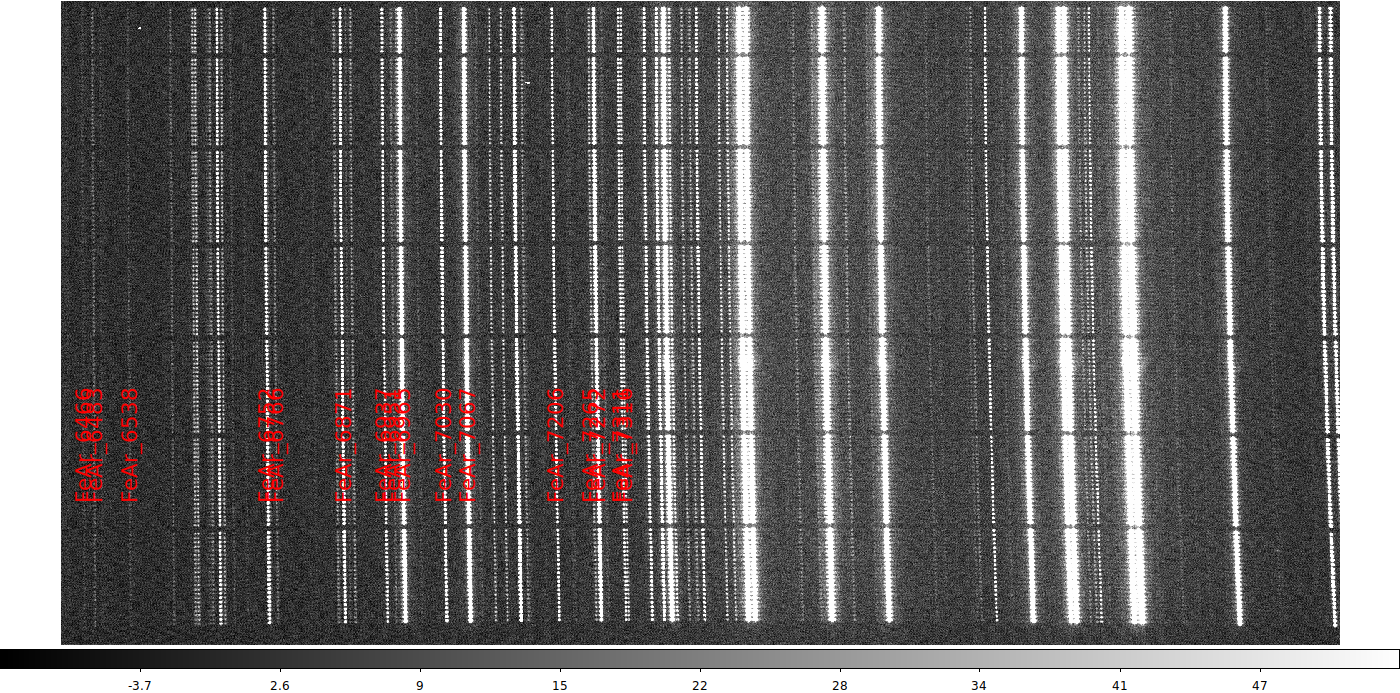

The FeAR lines used to calibrate 066LL (or).

The Hg lines used to calibrate 066LL (or).

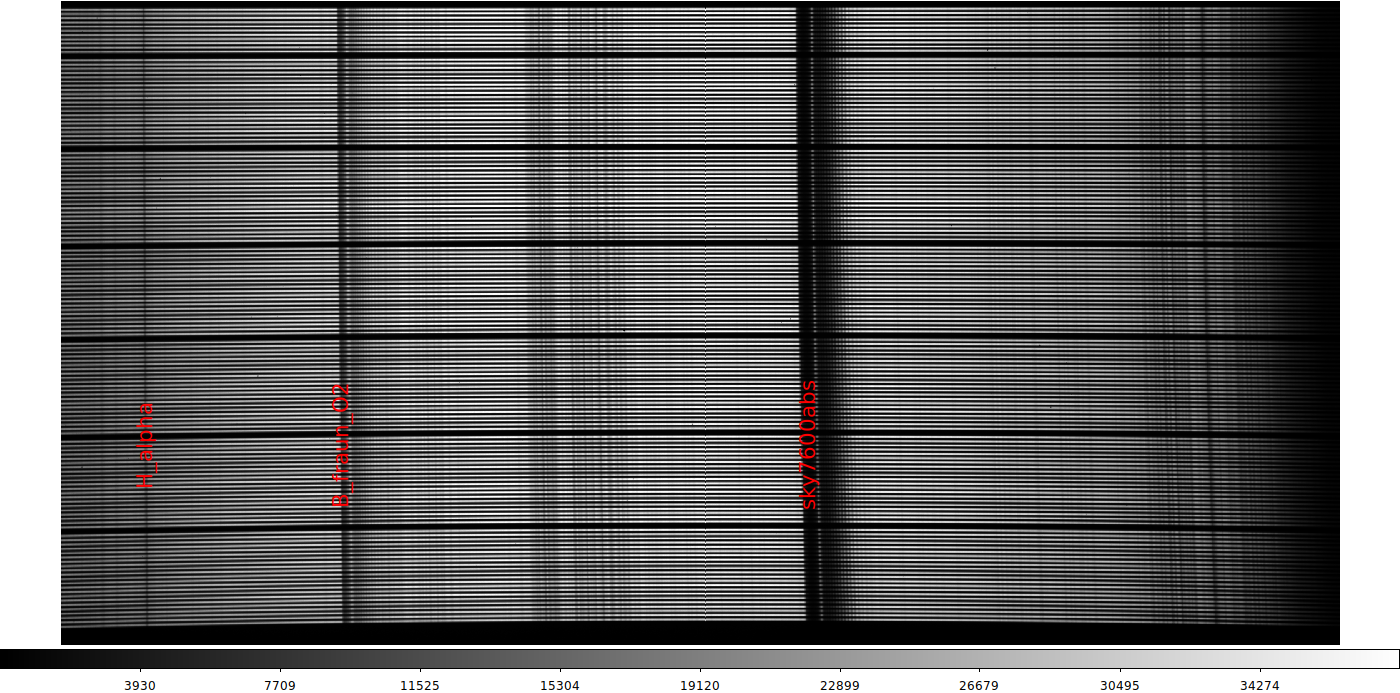

The twilight flat (solar spectrum) lines used to calibrate 066LL (or).
