We'll take a small simulated image and rotate it. The image is called Model.fits. In this case we'll just make a second copy of Model.fits to get imag 2 and then we'll make up a TRS file that does the rotation about the center pixel in the image (X,Y=100,100) and also a REFLECTION about the Y axis.

We'll make our images for the command line:
% cp Model.fits img1.fits
% cp Model.fits img2.fits

Here is our TRS file:
  100.0  100.0       Y      1.0    +15.0     -100 -100
 xofirt yofirst   reflect  fscal   theta   xolast yolast

Since we want to convert img2, the name of our TRS file have to be:    TRS.img2-XY2XY-img1

# to make thetransformation
% clip_imshift_trs.sh  img1.fits img2.fits NEW.fits

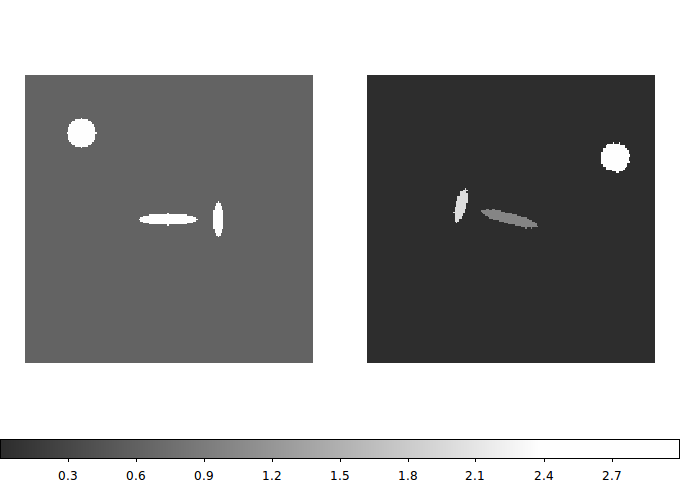

Our input image, Model.fits (img1.fits) is transformed using a TRS file: Here is our TRS file: 100.0 100.0 Y 1.0 +15.0 -100 -100 xofirt yofirst reflect fscal theta xolast yolast % clip_imshift_trs.sh img1.fits img2.fits NEW.fits The oriniganl image (Model.fits) is on the left, and the transformed image (NEW.fits) is on the right.Our field has clearly been flipped about the Y axis. We also see our desired 15 degres rotation. However, unlike our example 1 case, we note that out positive theta value now rotates the field in the clockwise (CW) direction. This is due to the our introduction of the reflection.
