Layout of VIRUS

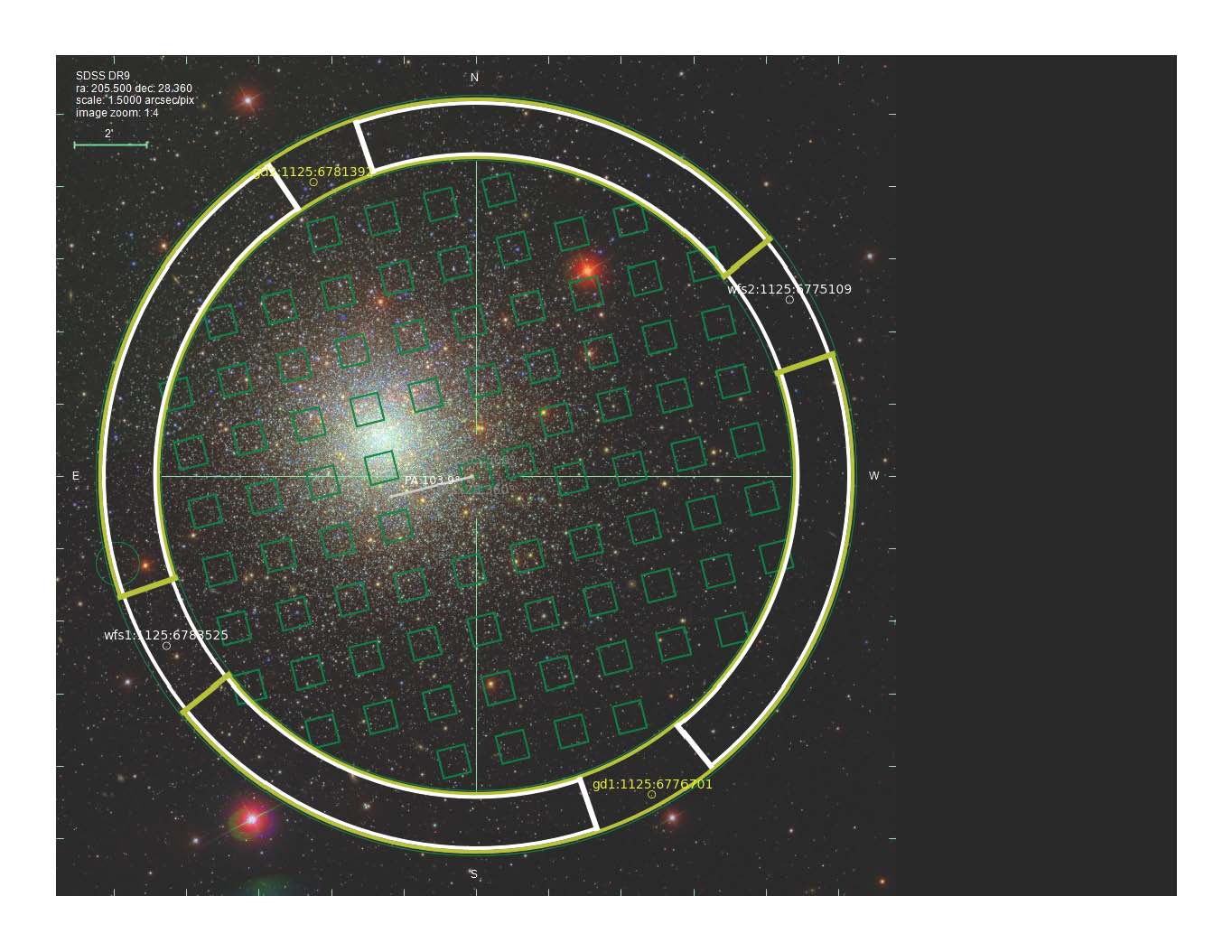

The image below is a shuffle output for the globular cluster M3, assuming a fully-populated array of 78 IFUs in VIRUS.

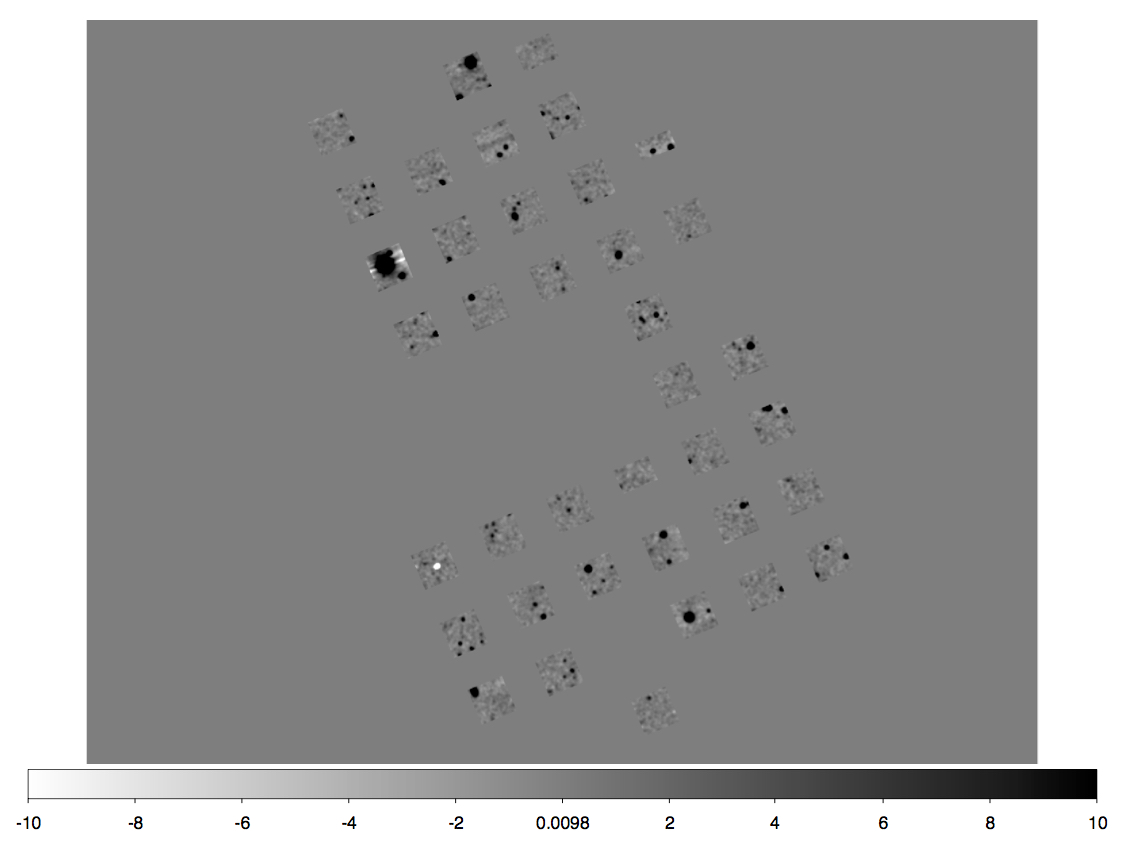

Here is an image of a current reconstructed image of VIRUS:

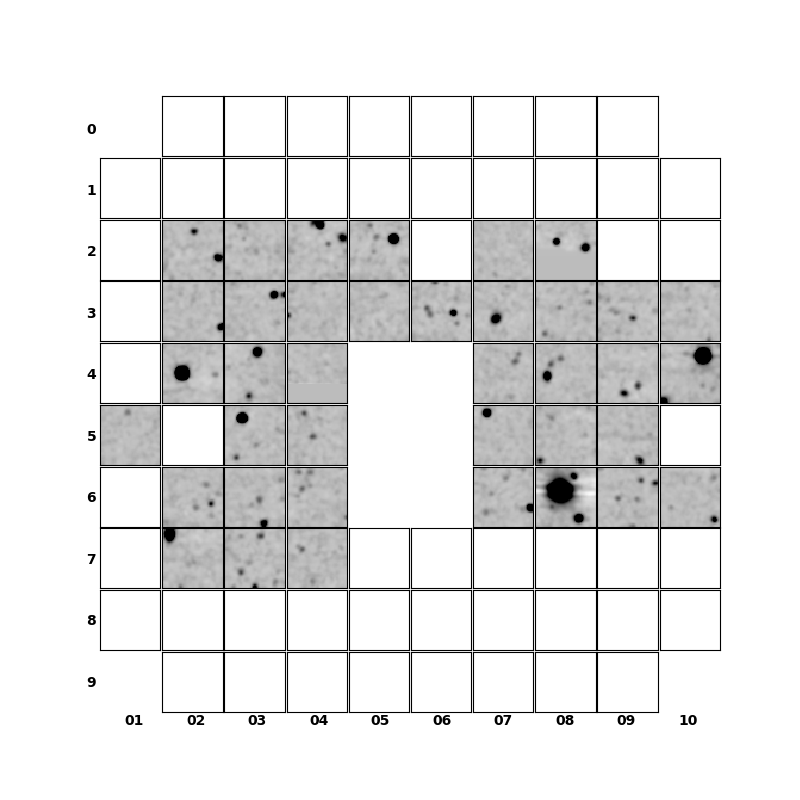

Here is the above image where we pack the IFUs and label them accordingly:

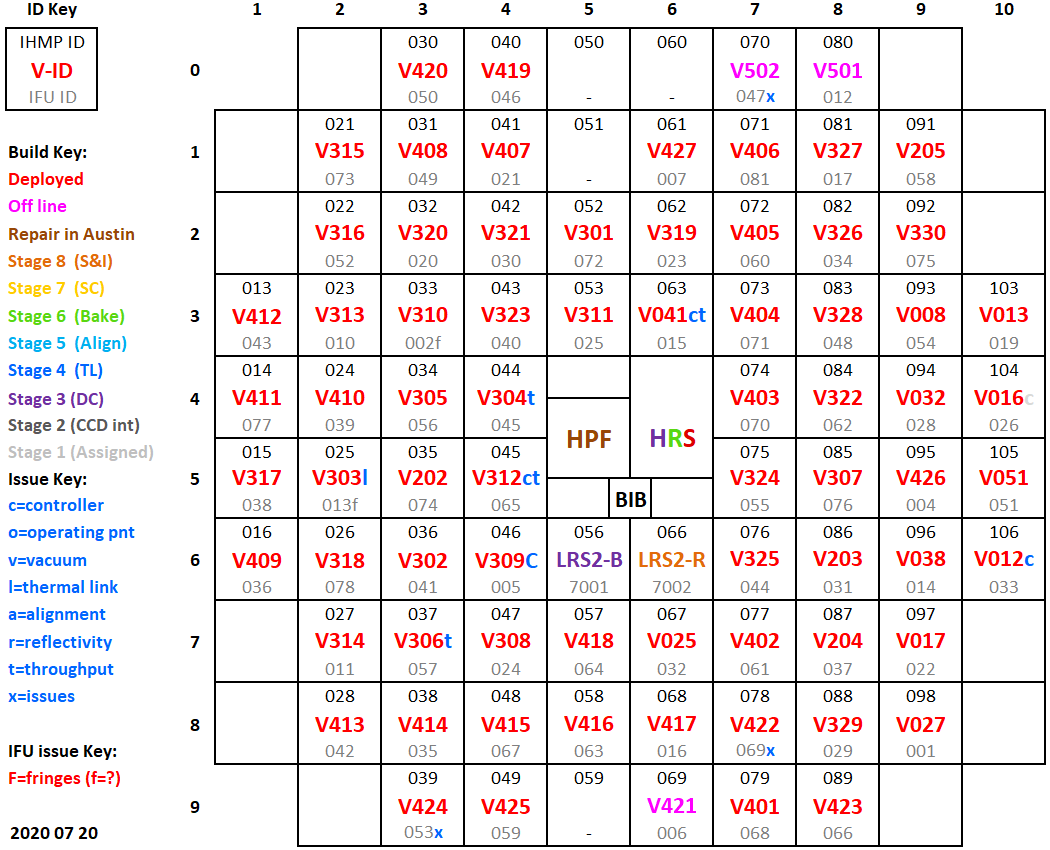

Below is the deployment plan for the full focal plane. For planning purposes for Aug 1, we can approximately assume a rectangular grid, with corners at IFUs = 012, 102, 017, 107:
